Item 738
CB8 Connector Board
CUSTOM APPLICATION PHOTOS
Application 1 | Application
2 (top) | Application 2 (front)
| Application 2 (back) | Applciation
2 (close-up)
Application 1
Top of Page
Mounting Male and Female Circular Connectors
Application 2
(top view)
Top of Page
The cable this board was built for has four Dsub connectors
on one end and a DB37 connector at the other end.

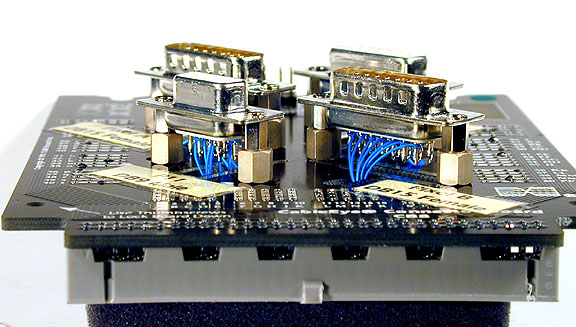

Application 2
(side view)
Top of Page
Each connector pin and shell is wired to a unique pad
on the CB8. The connectors are rigidly supported by aluminum standoffs.
These connectors may be equipped with "Connector Protectors"
(male-female minigender changers) to prevent wear out of the fixture.

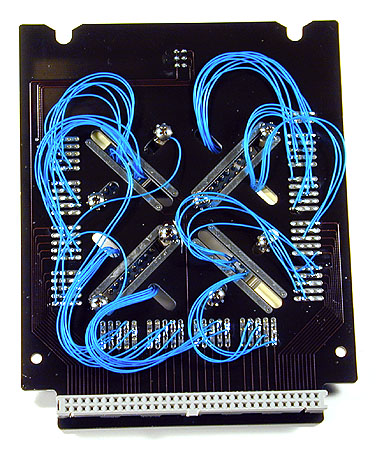

Application 2
(back)
Top of Page

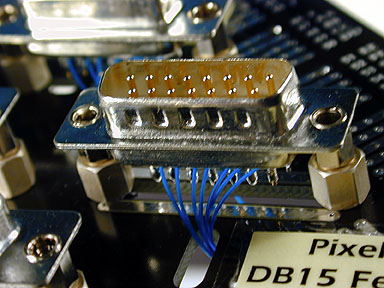

Application 2
(close-up)
